MAXOAK/BLUETTI EB240 Portable Power Station
- Capacity: 2400Wh/1000W
- Load: Continuous 1000W(1000W-load-1200w@2mins,Above 1200W,turn off)
- Top-Brand Lithium Polymer Battery Cell ,2500+ cycle life

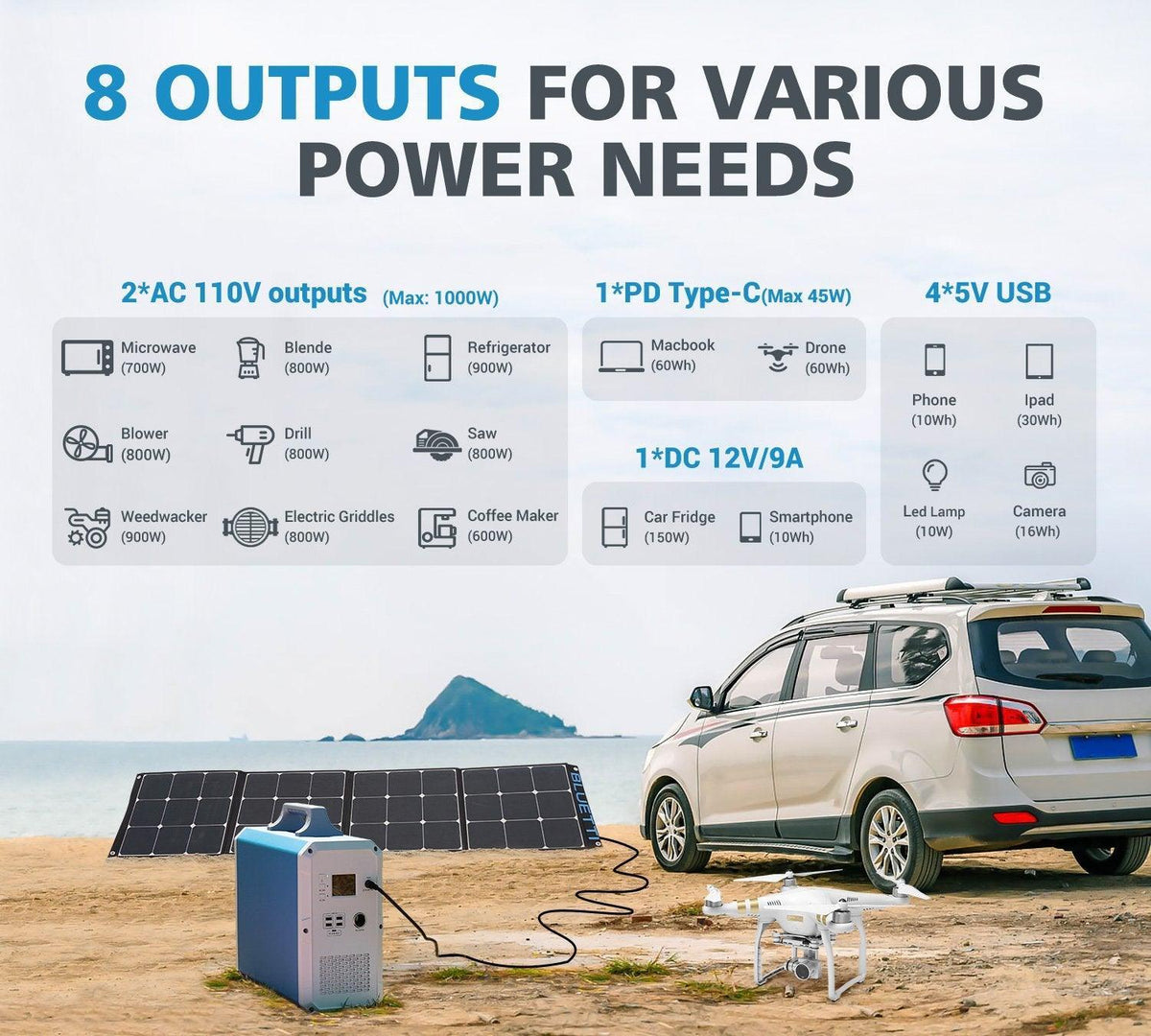

- Multi-Outputs for Various Power Needs: 2* 110V AC Outlets(Pure sine wave), 12V/9A Car port,1* PD 45W USB-C and 4*5V/3A USB

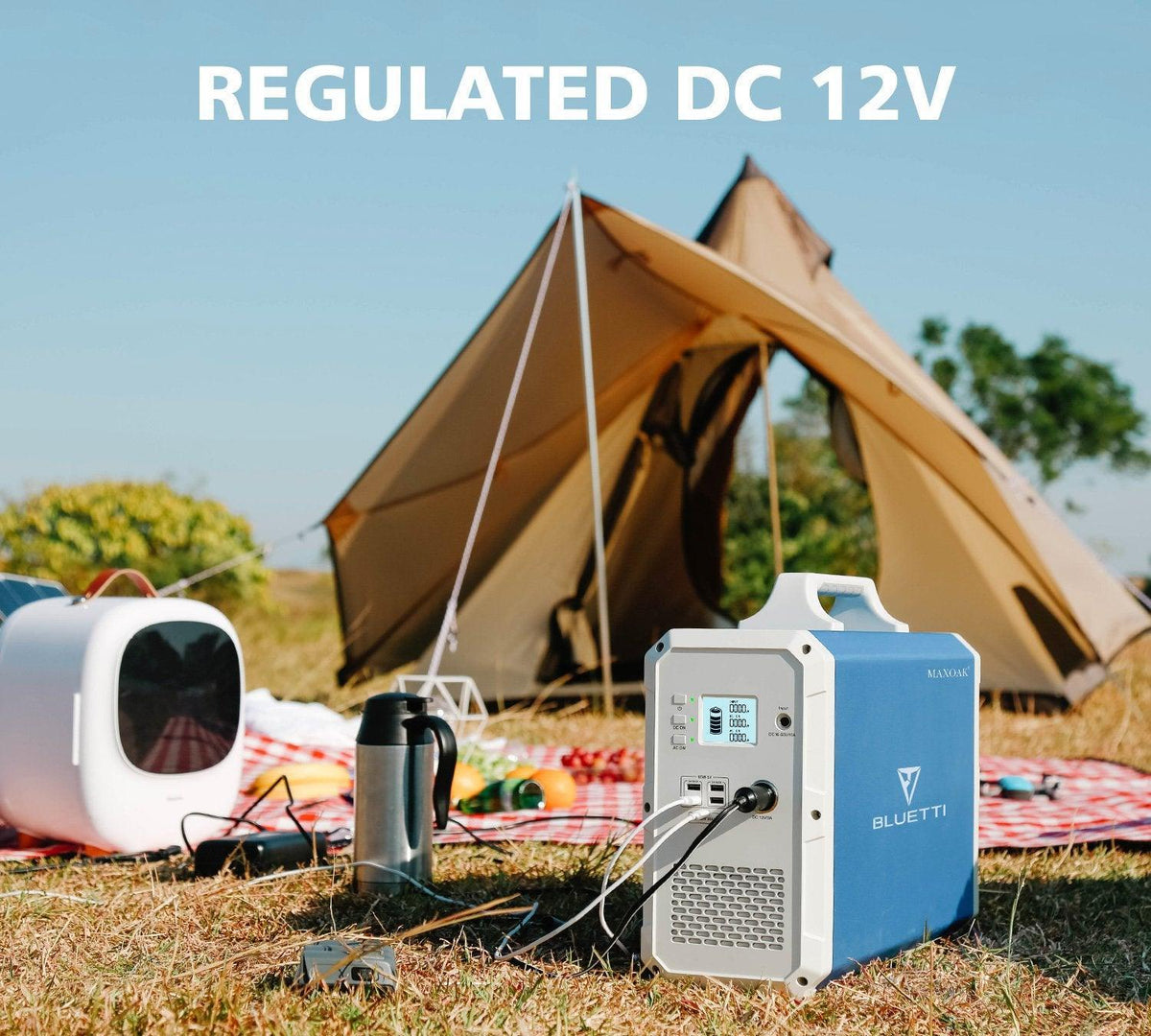

- Regulated DC12V,Care for Car-powered Devices.

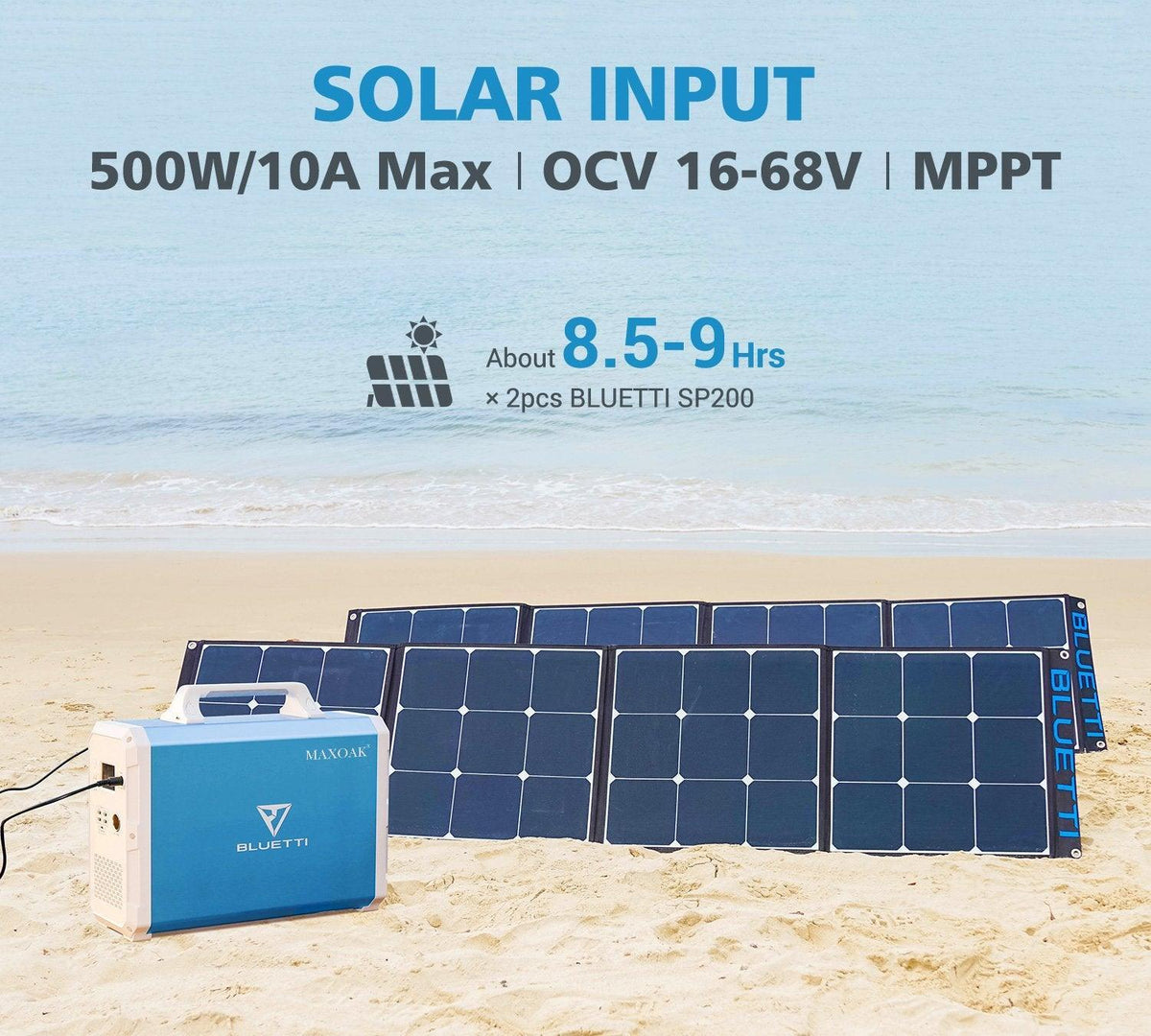

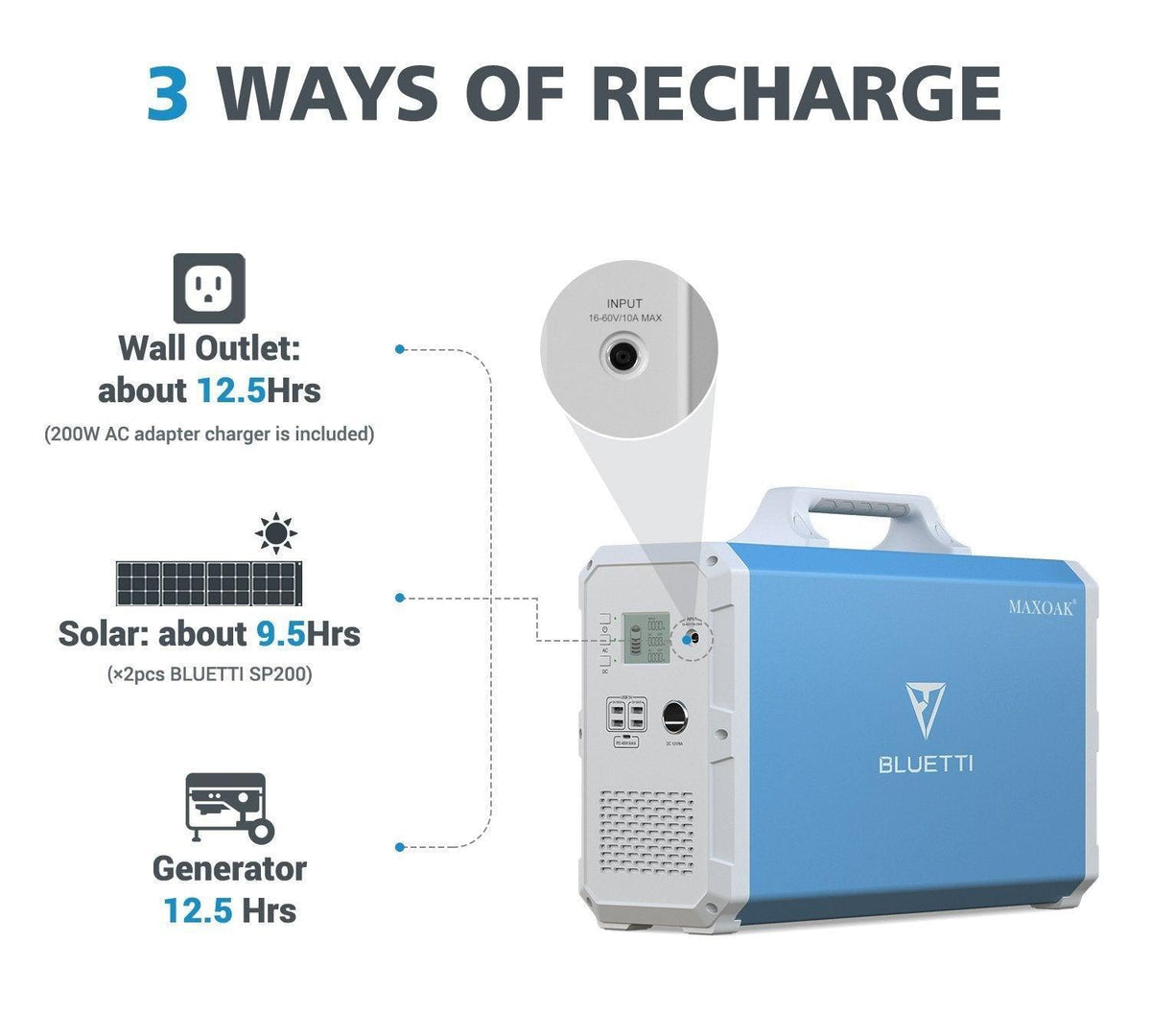

- Solar Input: Max.500W, OCV 16-68V,Current Max.10A, MPPT
A pre-installed MPPT in the BLUETTI EB240 allows up to 40% faster charging speed from the solar panels.
MAXOAK BLUETTI EB240 has a built-in MPPT controller,no need other controller.
Recommended Solar Panel: BLUETTI SP200 200W solar panel or BLUETTI SP120 120W panel ,Wewon't responsible for the conversion from third-party solar panels.

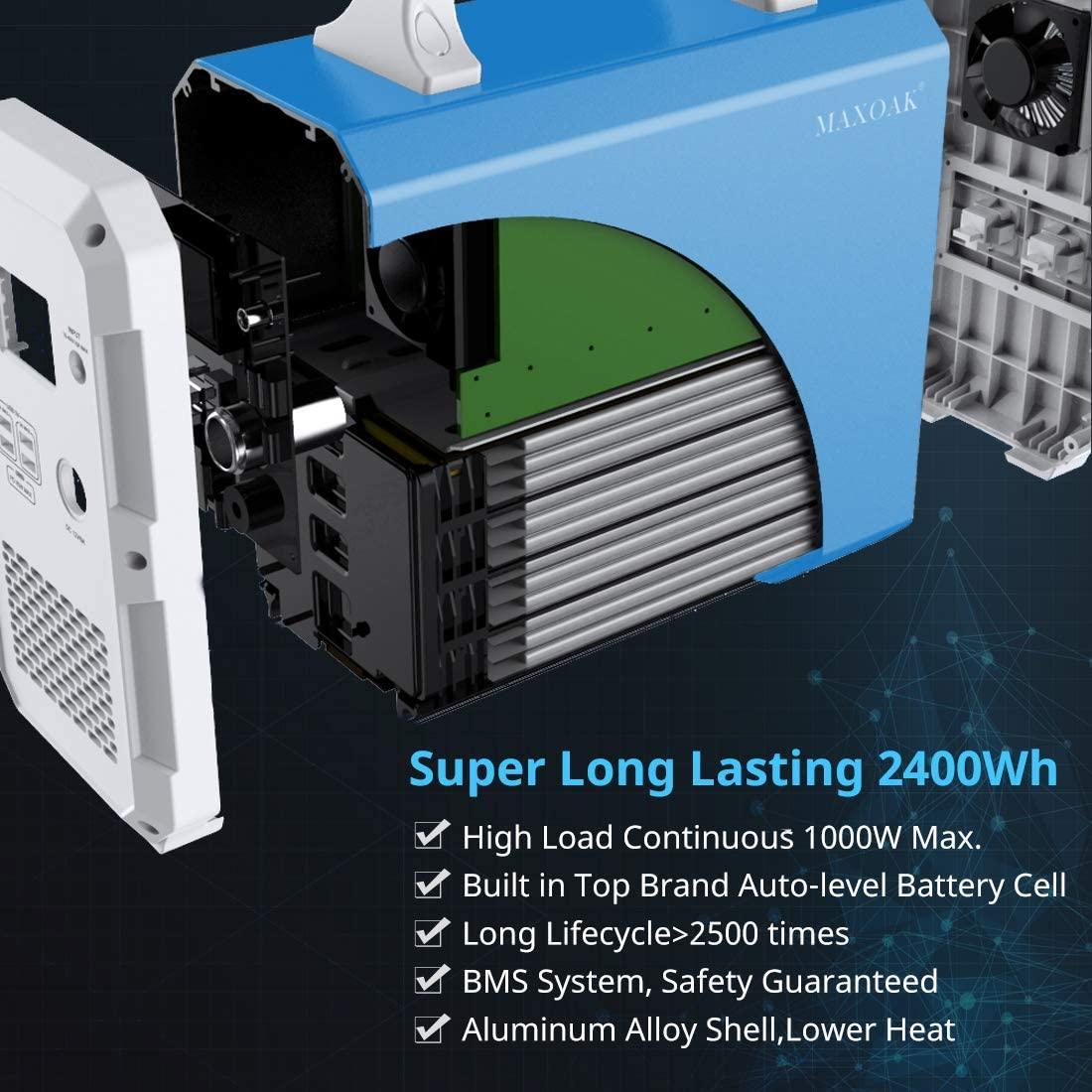

We use the top brand lithium-ion battery cell, it has longer life time(over 2000+), and higher discharge rate, better heat dissipation. We built in BMS(battery management system), it has over-load/ over-current/ over-temperature/ over voltage/ low-voltage/short circuit protection.
Although it has high load capability, make sure to check the rated/instant start-up power of your device, make sure it does not exceed 1000W, otherwise our EB240 will turn off for overload protection. Load capability: Continuous 1000W. Overload capability: 1000W≤load<1200W last for 120S; 1200W≤load, shut off after 0.5s
The cooling fan will start if it meets one of the below: 1. A load of inverter exceeds 400w. 2. A load of the 12V cigarette lighter socket exceeds 100w. 3. The charging power of the attached appliances exceeds 250W.
EB240 has 2400 watt-hour power stored in the lithium battery pack. It has huge power for indoor use and outdoor use for outdoor enthusiasts, travelers, adventurers, campers, RV’ers, Van lifers, liveaboards, and ocean anglers.

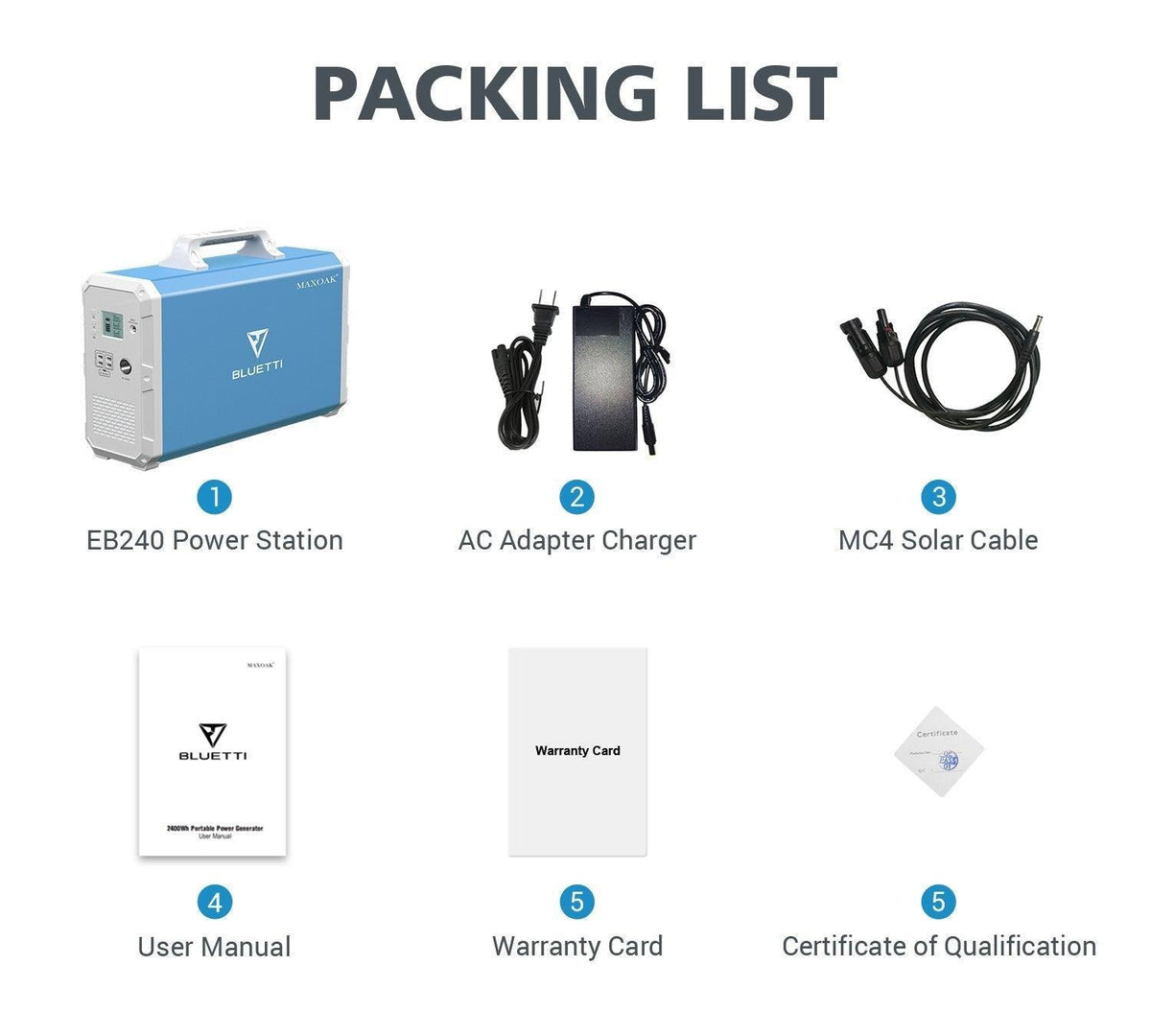

1*Portable Power Storage (EB240), 1*200W AC Wall Charger, 1*PV Solar Charging Cable(DC7909 to MC4), 1*User Manual, 1*Certificate of Qualification.
-
What is the capacity of this EB240 power station?
2400Wh,162162.16mAh/14.8V( equivalent to 648648.65mAh 3.7V)
-
Can charge and discharge at the same time?
Yes, you can.
-
What kind of product can be charged by the EB240 power station?
For AC powered device, make sure the max. power of the device is no more than 1000W. for overload capacity, 1000W ≤Load<1200W @2Min,1200W≤Load @1s;
-
How to choose compatible Solar panel?
It must meets:
1)Open Circuit Voltage(OCV):16-68V/Max.10A, Max.500W (DC7907 to MC4 Charging cable is included)
2)MC4 Connector Tips: make sure the total OCV(open circuit voltage) is no more than 68V if you connect several solar panel in series!!!!! -
How long can be recharged by Solar Panel?
It depends on the input power of the solar panel and the strength of the sunlight.
For example, for 300W input solar energy, the charge time is about 8-8.5Hrs. for 500W solar panel, the charge time is about 5.5-6hrs. -

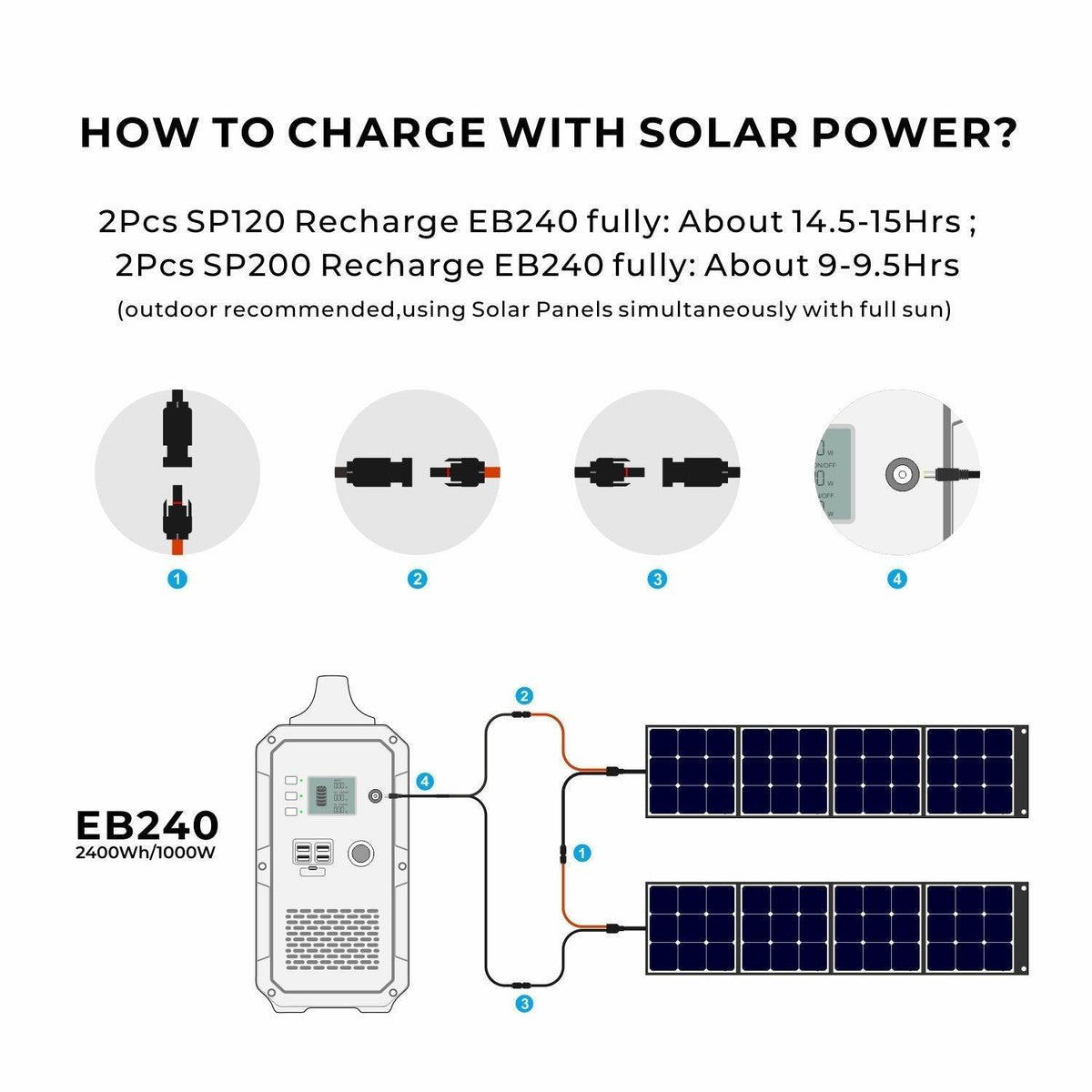

Can I connect the solar panel in series or in parallel?
Yes, you can. for example, connect 2*DC18V (rated power)/150W solar panel in series, if the OCV (open circuit voltage is 22V), so connect 2 pcs in series, it is finally total 44V/300W.
-
What is the size and weight for this EB240 power station?
Size: 493.5*165.4*364.7mm (19.43*6.5*14.4inch)
Net weight: 22KG (48.5lb) -
How long should I recharge the EB240 power station if I do not use it for a long time?
We suggest to recharge it very 3 or 6 months for better protect the battery cell and ensure a longer life cycle.
-
Anything else important should I know?
Note: When the total output power exceeds 1000W, the DC output will be directly shut down. When the load is less than 30W, the output power would not be displayed. When a high-power appliance is attached to the product, the displayed output power and the actual output power could be different for up to 30W.
Model: | EB240 |
---|---|
Capacity: | 2400Wh (648648mAh/3.7V, 162162mAh/14.8V) |
Inverter Load: | Continuous 1000W (1000W≤load<1200W last for 120S;1200W≤load,shuf off after 0.5s) |
Battery: | Li-ion battery cell,Auto-level,Lower heat and high efficiency |
Input: | AC/PV Input: 7.9*0.9mm DC, 42V/200W, OCV 16V~68V /MAX.10A |
Output: | 2*AC110V, 1*12V9A, 1*PD 45W USB-C, 4*5V3A USB. | Size&Net Weight: | 19.4*6.5*14.4inch,48.5lb. |
