BLUETTI EB240 Portable Power Station
- Capacity: 2400Wh/1000W, LiFePo4, life cycles
- C Load: Continuous 1000W(1000W-load-1200w@2mins, Above 1200W,turn off)
- Multi-Outputs for Various Power Needs: 2* 110V AC Outlets(Pure sine wave), 12V/9A Car port, 1* PD 45W USB-C and 4*5V/3A USB

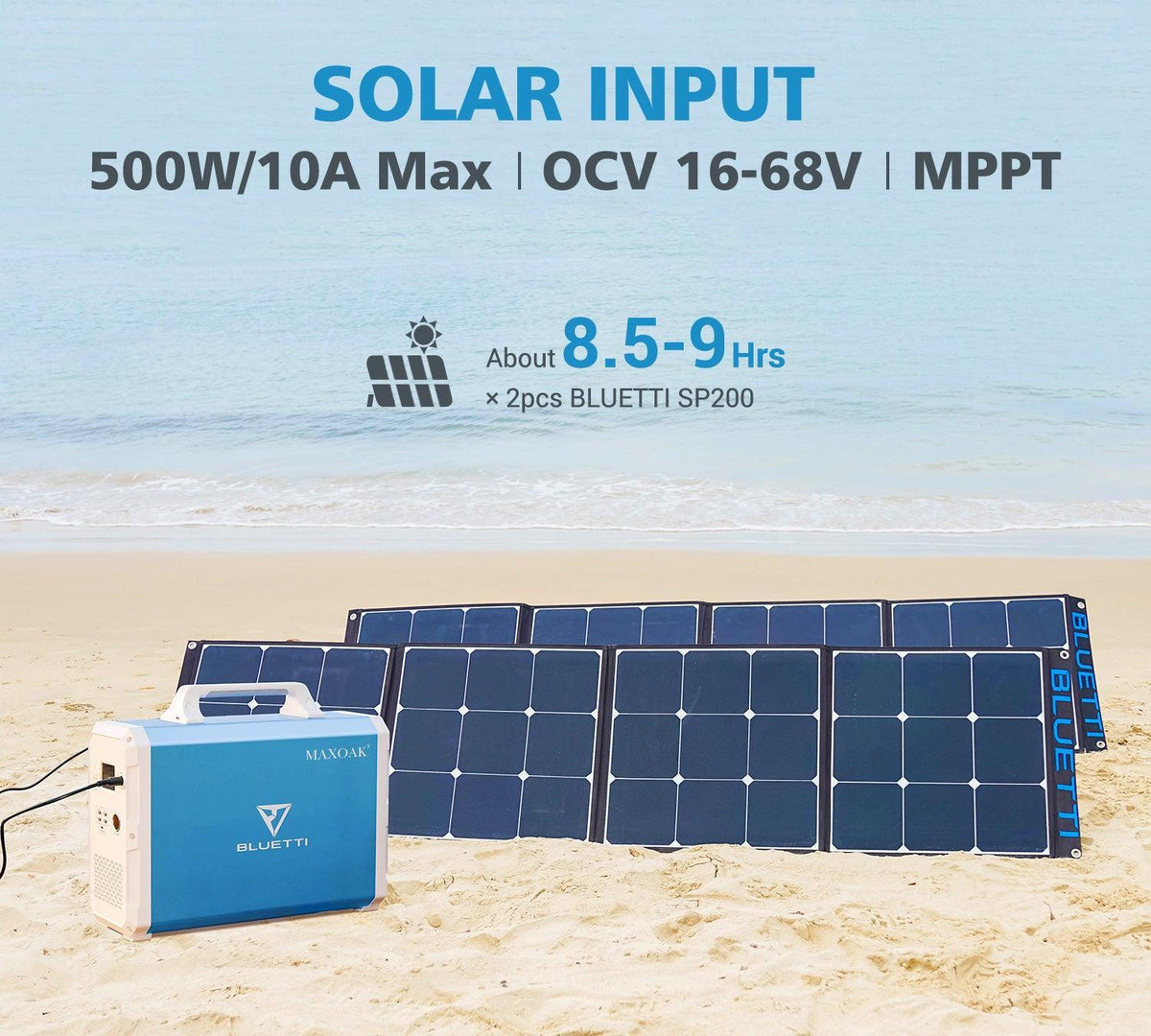

- Solar Input: Max.500W, OCV 16-68V, Current Max. 10A, MPPT
- Regulated DC12V, Care for Car-powered Devices.
BLUETTI SP120W Foldable Solar Panel
- Monocrystalline silicon cells, ETFE, scratch-proof, and easy to clean
- Cell efficiency: 23%, working voltage: 19.8v, OCV:23.7V, short circuit current: 6.66A
- Portable & Compact: 16in*16.8in(Folded), Weight:9.48lbs
The solar charging efficiency is much higher with a built-in MPPT. It can adjust to the best charging modes with the intensity of the sunlight. You can connect the EB240 to the solar panel via our attached DC to MC4 solar charging cable without another controller.

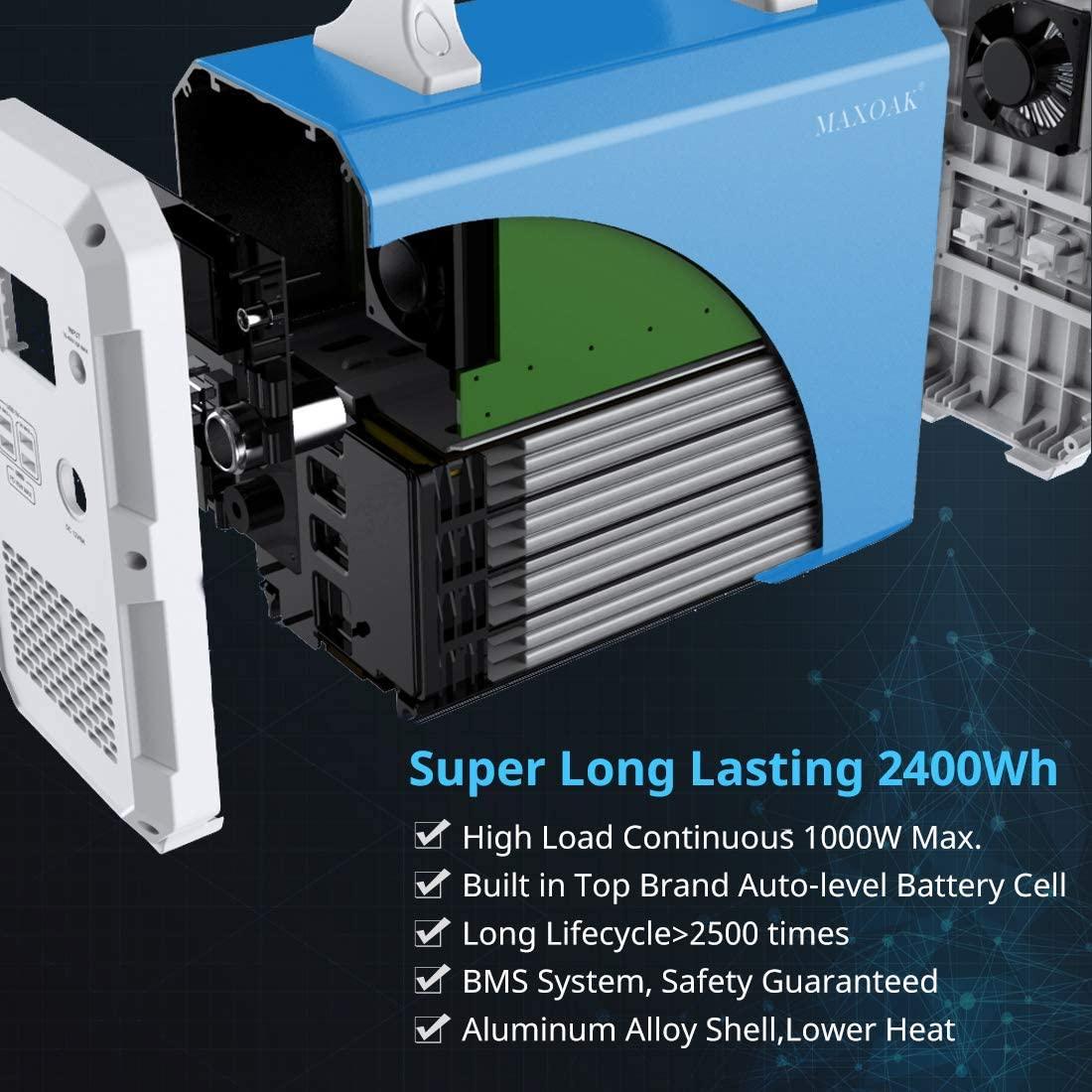

We use a top-brand lithium-ion battery cell, which has a longer lifetime (over 2000+), a higher discharge rate, and better heat dissipation. Also, the built-in BMS(battery management system) offers over-load/over-current/over-temperature/over-voltage/low-voltage/short-circuit protection.
Though it has high load capability, you must check the rated/instant start-up power of your devices, and make sure it won't exceed 1000W. Otherwise, the EB240 will turn off due to overload protection. Load capability: Continuous 1000W. Over load capability: 1000W≤load<1200W last for 120s; 1200W≤load, shut off after 0.5s.
The cooling fan will start working automatically when one of the following situations occurs:
1. The load of the inverter exceeds 400w.
2. The load of the 12V cigarette lighter socket exceeds 100w.
3. The charging power of the attached appliances exceeds 250W.
EB240 has a huge capacity of 2400-watt-hour power stored in the lithium battery pack, which enables it to give enough energy to power your devices, from off-grid adventures to home backup power during power outages. It is a must-have for camping enthusiasts, travelers, adventurers, and ocean anglers.
1*BLUETTI EB240 Solar Power Station (2400Wh/1000W) and all the accessories for EB240(200W AC Adapter*1, Solar Charging Cable(DC to MC4, Length: 1.7m)*1, Manual*1 and 2 pcs 120W/200W Foldable Solar Panels and all their accessories(MC4 Charging Cable, Length: 3m).
How to choose the solar panel & what is the recharge time?
We recommend choosing a solar panel that meets below:
1) open circuit voltage between 16-68V, Max.500W, Max.10A
2) MC4 Connector (if your solar panel has an Anderson connector, you need to buy an Anderson to MC4 charging cable)
Note:The total OCV below 16V or above 68V will trigger low-voltage/over-voltage protection. We suggest choosing the working voltage of the solar panel above 18V for better performance. EB240 only receives 500W/10A(Max.)even when the total input power/current exceeds 500W/10A.
The recharge time varies from different factors such as weather condition, the actual input solar power, temperature, angle, etc.

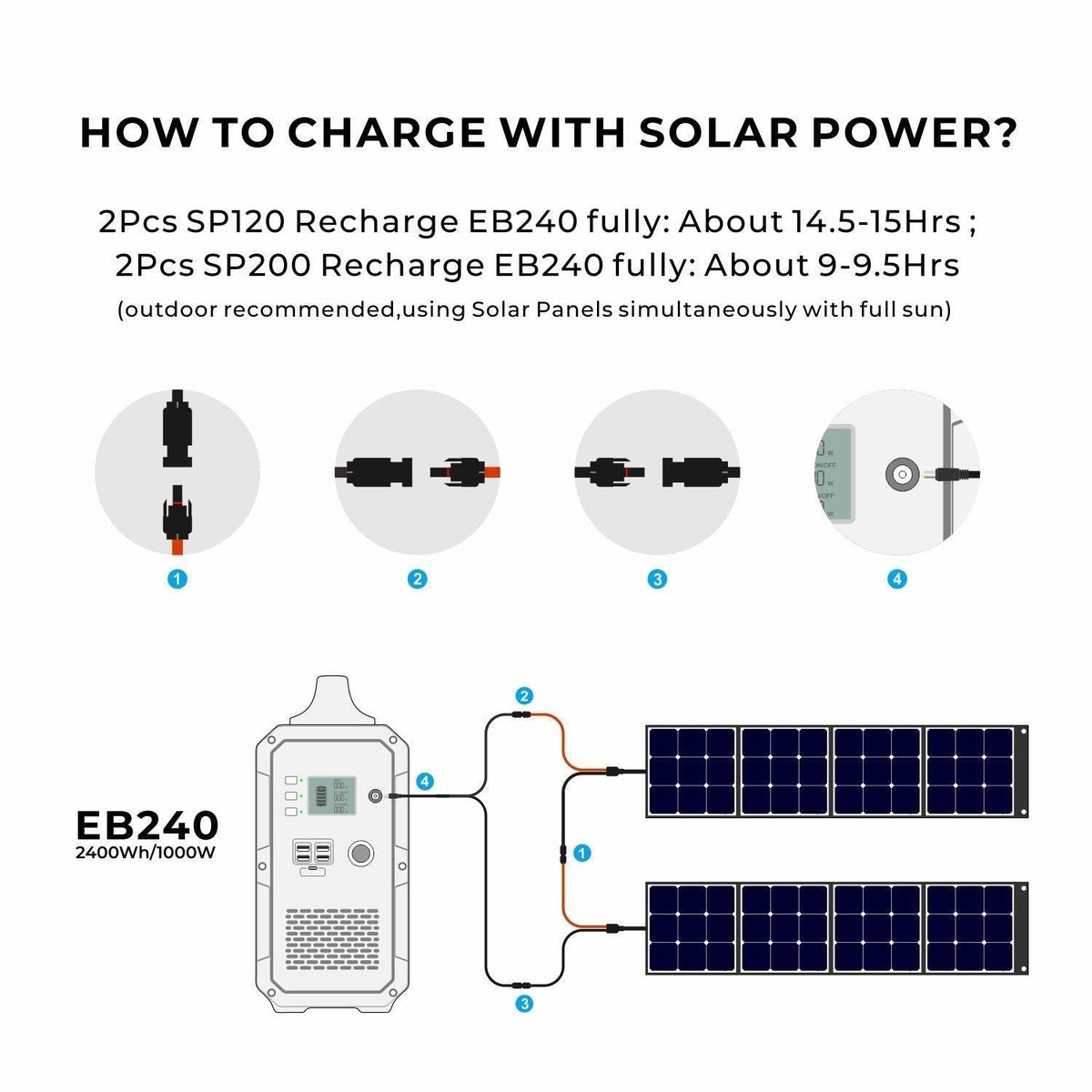

How many solar panels can I connect to the BLUETTI EB240?
We suggest connecting 2pcs SP120 120W solar panels or 2pcs SP200 200w solar panels in series.
For professional solar user, you can connect 2*SP120 or 2*SP200 (a total of 4pcs) for maximum solar power(the parallel cable is not included, and you need to buy it separately).
