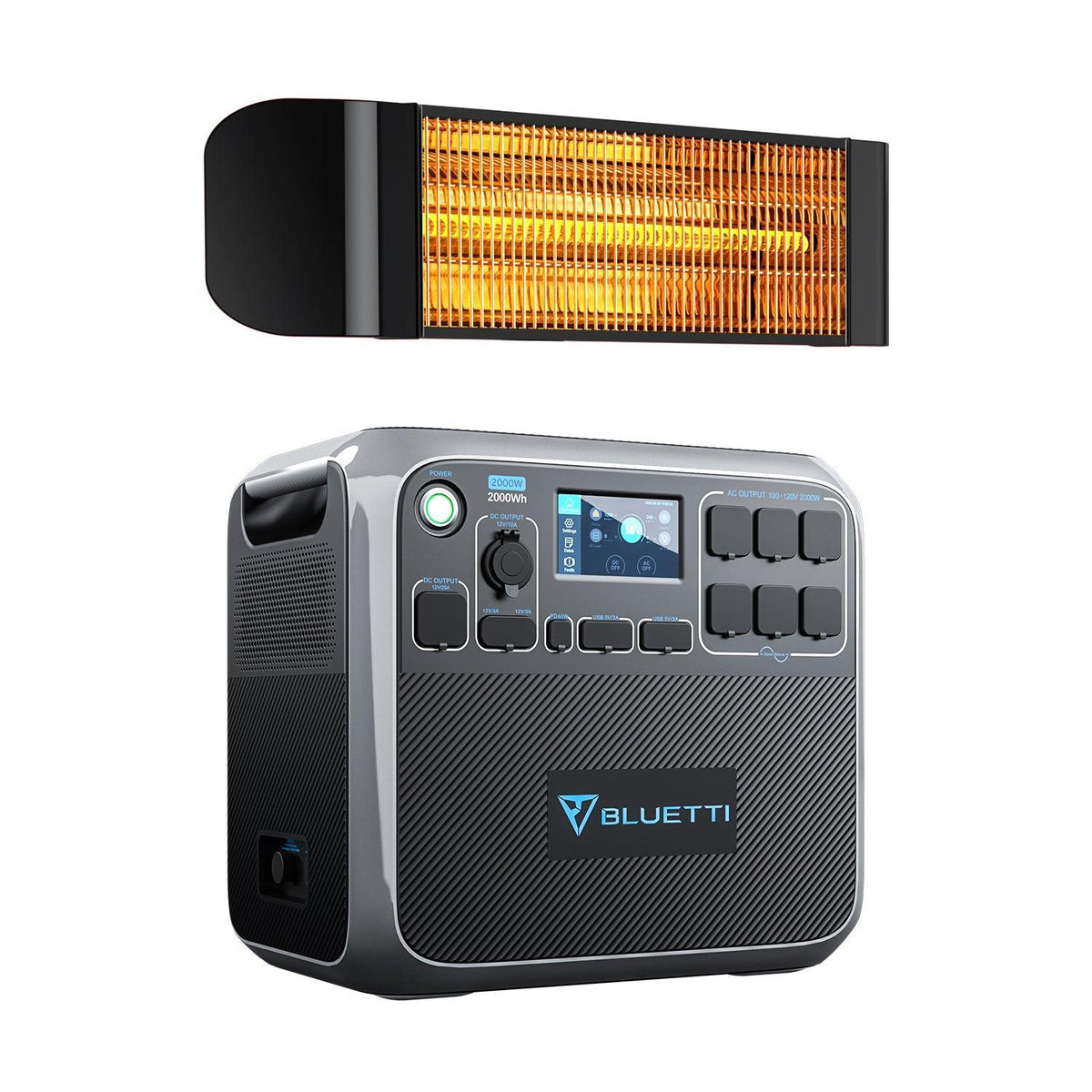

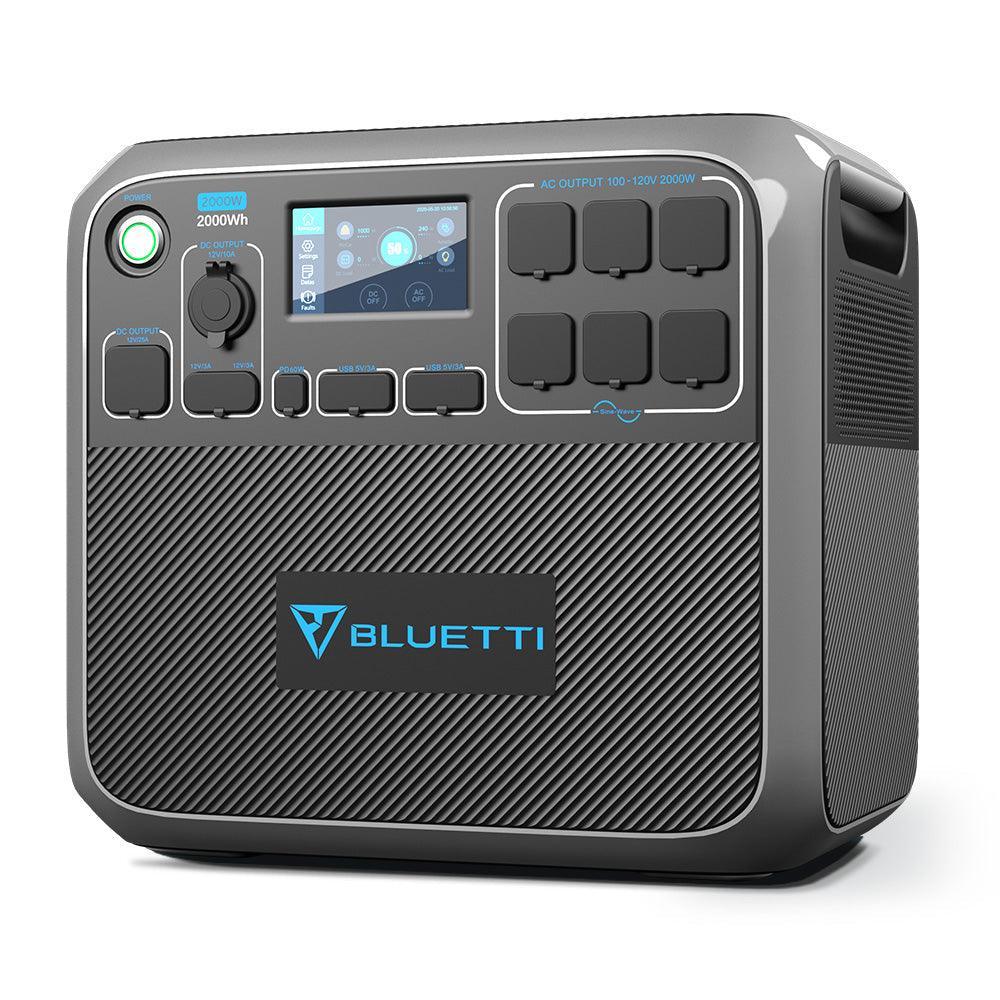

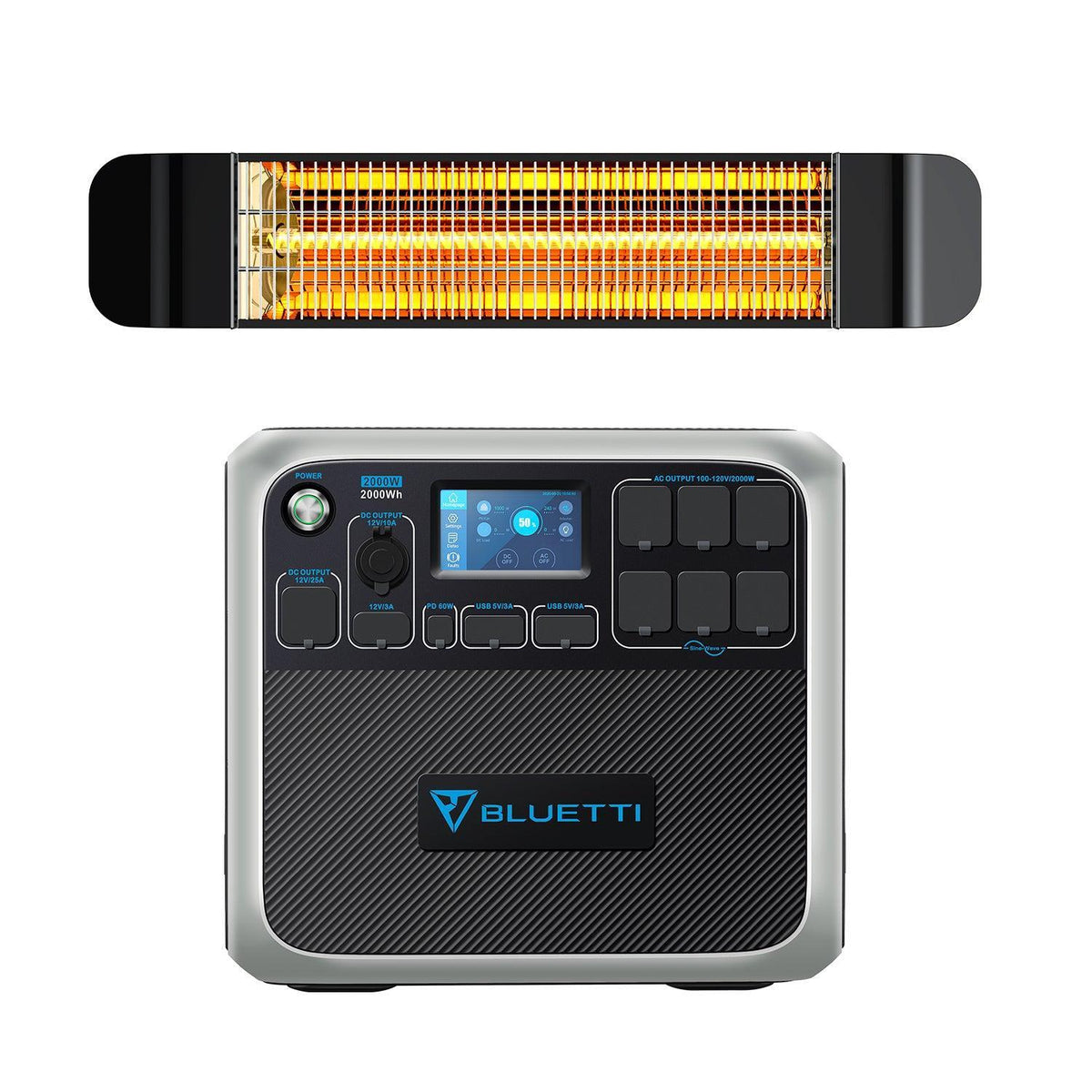

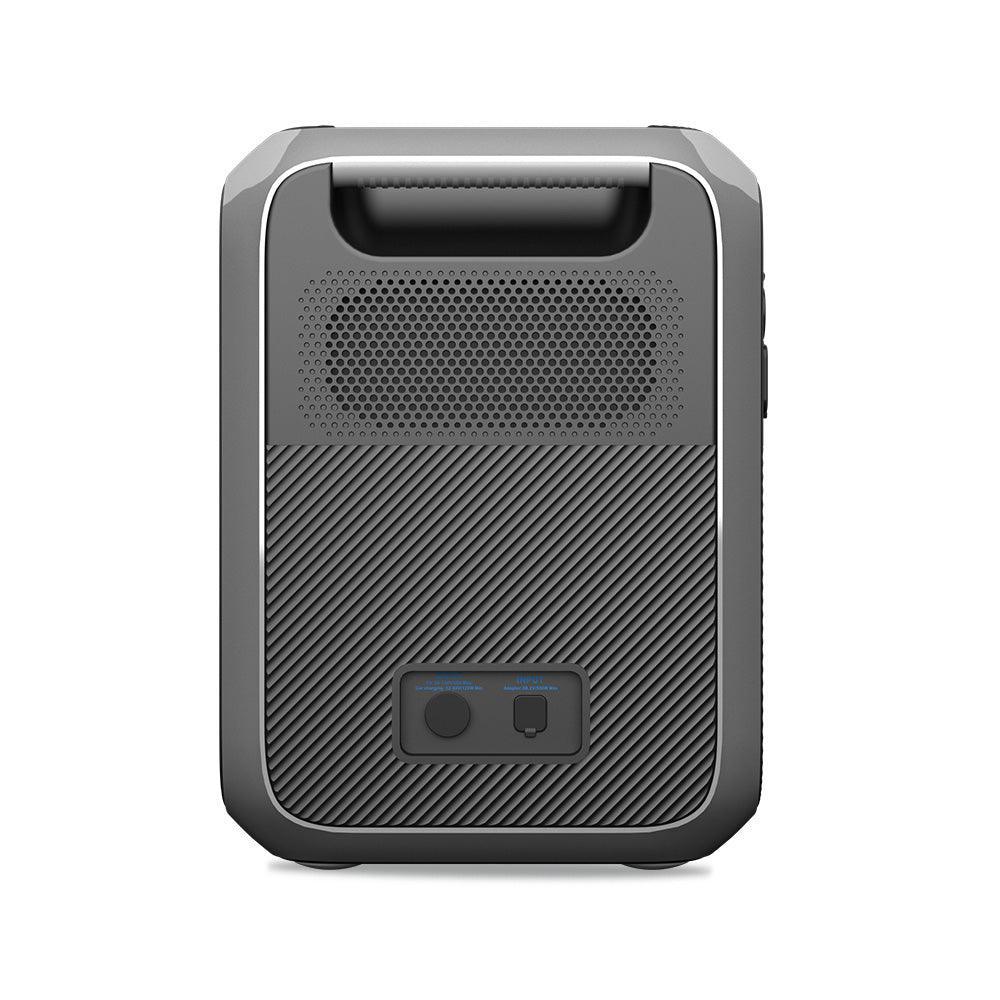

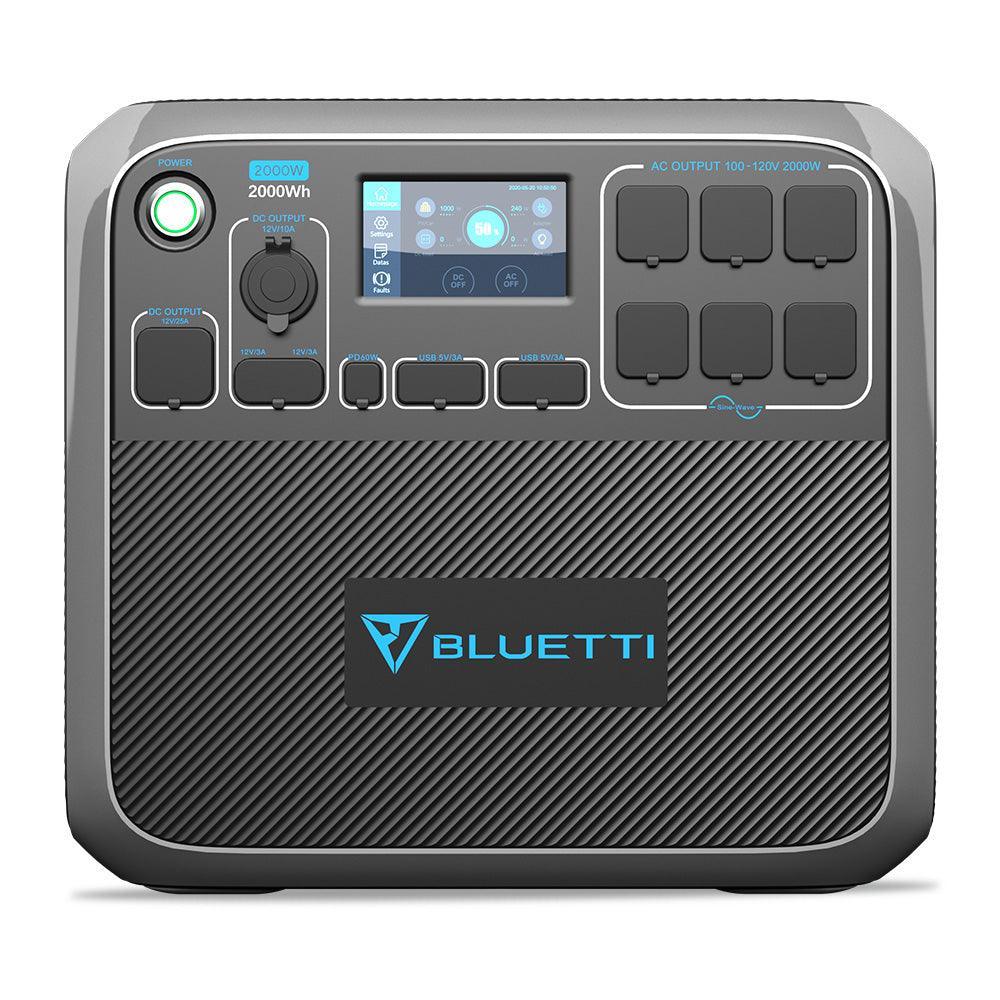

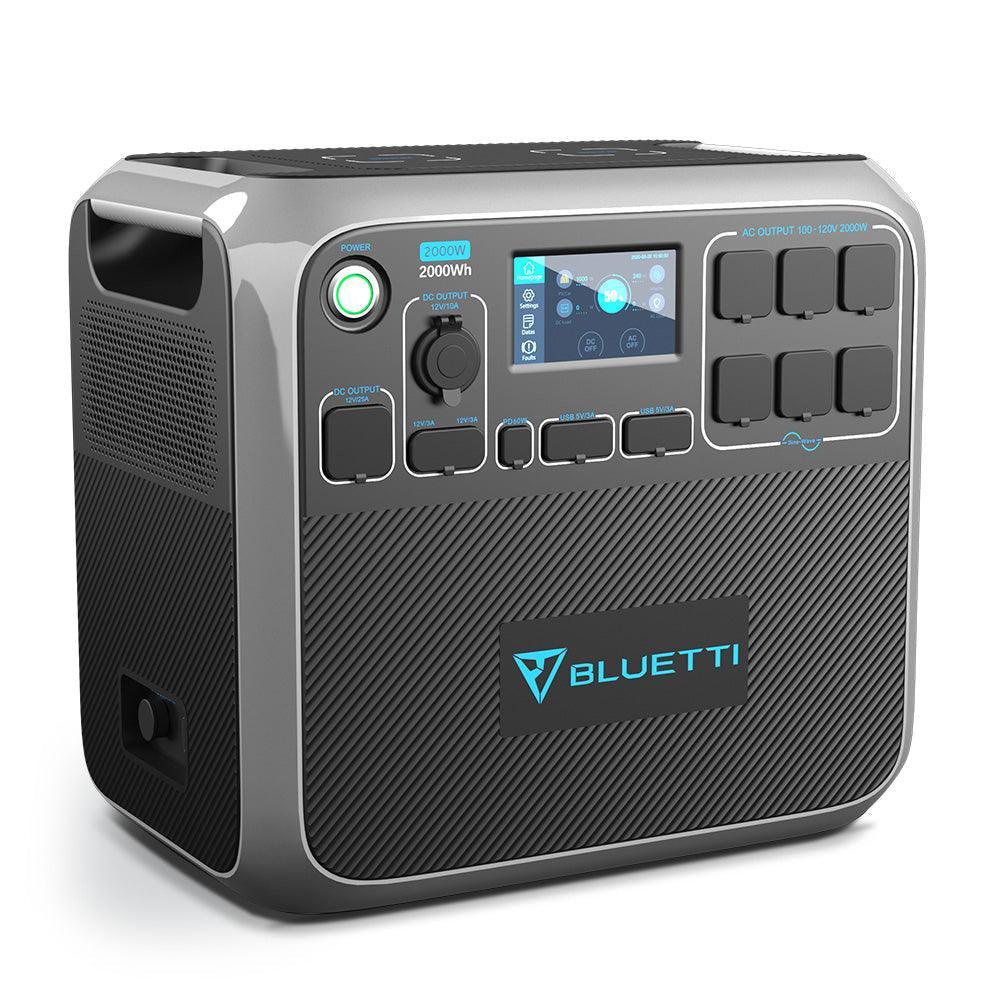

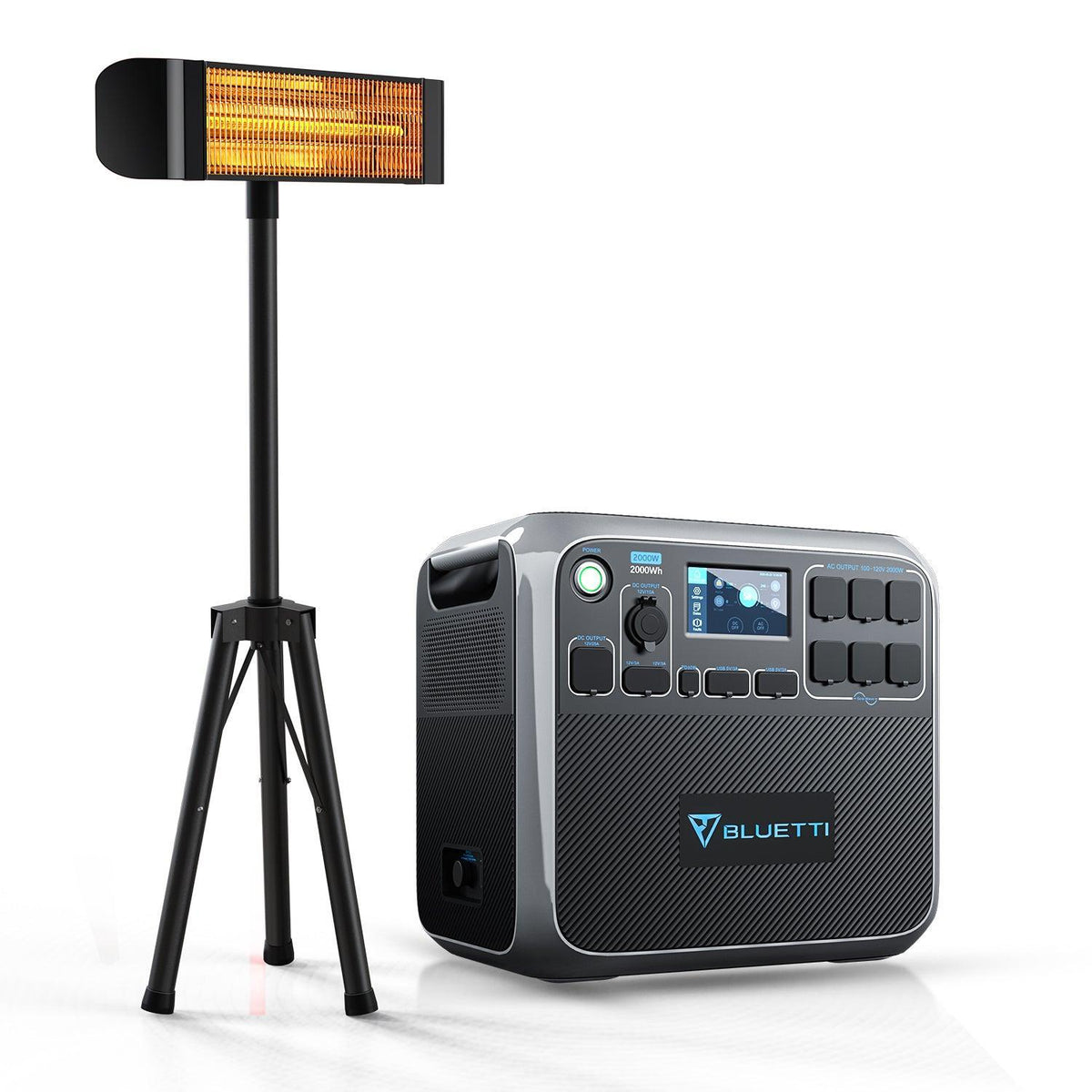

BLUETTI AC200P 2000Wh/2000W Portable Power Station+QHA Patio Heater 1500W

FAQS

• Q1: How can I connect AC200P with B230 or B300 expansion battery?

  You can use the P090D to XT90 cable connecting the AC200P with the EB230 or B300 battery pack.
  Click the link to buy the cable: https://bit.ly/3Z63e7o

• Q2: What is the BLUETTI AC200P case made of?

  A:

  AC200P is manufactured with UL94V-0 flame retardant PC+ABS case and TPU-coated aluminum handle.

• Q3: What kind of battery chemistry does AC200P use?

  A:

  LiFePO4 battery cells, the safest lithium battery type today.

• Q4: How much noise does AC200P make?

  A:

  It depends on the loads AC200P carries.
  Load<1500W, 45dB Max., just like the sound generated from a working refrigerator;
  Load>1500W, 54dB Max., just like the sound generated from a percolating coffee-maker.

• Q5: How long is the MC4 cable?

  A:

  The solar charging cable(MC4-Aviator) is about 1.7m long and the cable in the solar panel pack is about 3m long.

• Q6: Can I charge and discharge AC200P at the same time?

  A:

  Yes, you can.

• Q7: How soon will the AC200P be fully charged by car charging?

  A:

  18 hrs by 12V car charging and 9 hrs via 24V car charging.

• Q8: How much capacity does AC200P have after 3500+ cycles?

  A:

  AC200P can maintain above 80% capacity after 3500+ cycles.

• Q9: How long will the BLUETTI AC200P run my device?

  A:

  2000Wh × DoD × η ÷ (load power) = charging time (estimated)
  DoD is the battery discharge depth, η is the inverter efficiency. DoD=90%, η=90%.

• Q10: What is the surge power of BLUETTI AC200P?

  A:

  4800W.

• Q11: How can the AC200P save power drain?

  A:

  You can turn on the ECO Mode. When in this mode, the AC inverter will automatically turn off after a 4-hour low (≤50W) or no load to save power.

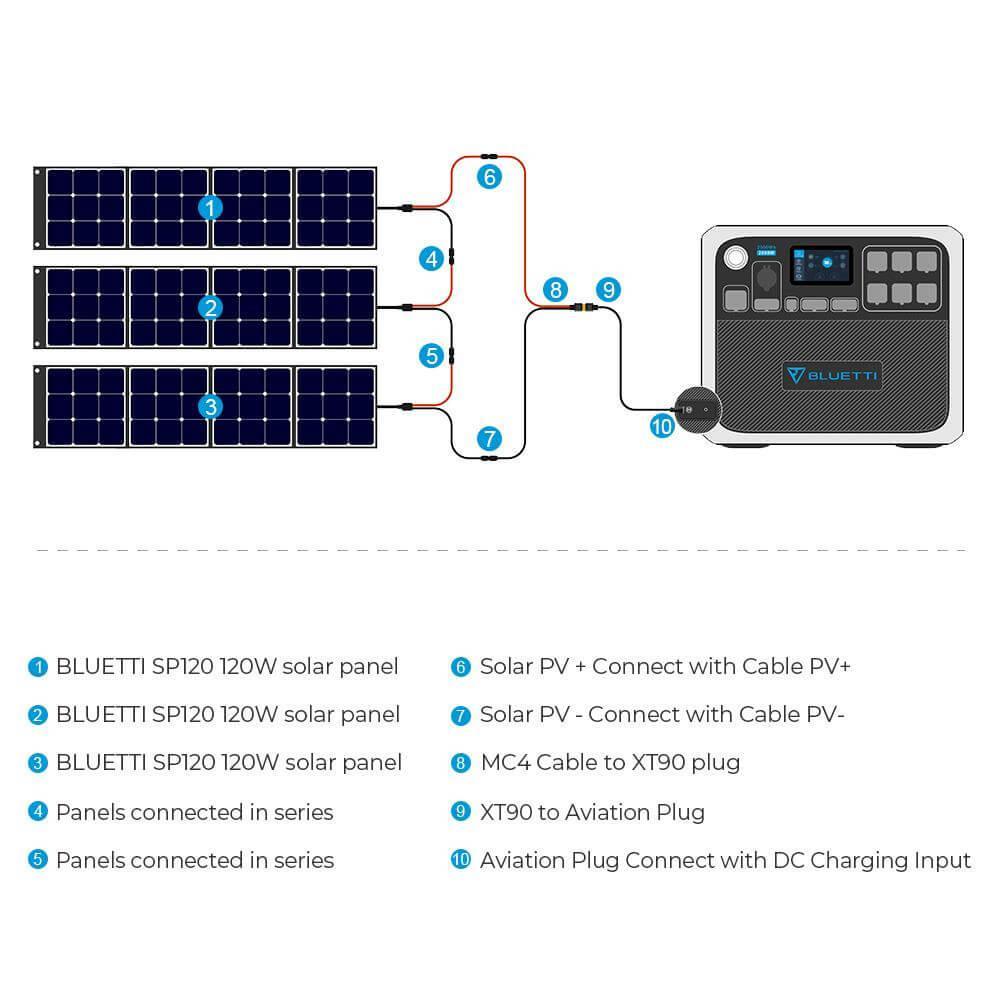

• Q12:What kind of solar panels should i choose for AC200P

  PV input requirements for AC200P:
  Open Circuit Voltage: 35-150V
  Input Power: 700W Max.
  Include MC4 connectors.

  Highly Recommended:
  5x BLUETTI PV120: ≈4hrs.
  3x BLUETTI PV200: ≈4hrs.
  2x BLUETTI PV350: ≈3.6hrs.
  * For reference ONLY.


• Q13:Does AC200P support 240V split phase bonding

  No

• Q14:Can I use or charge AC200P in sub-zero tempurtures?

  Temperature ranges for AC200P are:
  Charge: 0-40℃ (32-104℉);
  Discharge: -20-40℃ (-4-104℉);
  Storage: -20-40℃ (-4-104℉).
  Technically, it can power electrical devices under such situations, but please avoid charging it.

• Q15:How do i know whether my appliance can work well with AC200P?

  Calculate the total wattage of your devices. AC200P should work if the load doesn't exceed its rated 2,000W.

• Q16:Can it be laid on its side to save space?

  No. The internal structure will be loose due to long-term placement, so it is recommended to place it upright.

• Q17:What is the difference between AC200MAX and AC200P?

  The main differences are as below:
  1. Output power and capacity: 2000W AC power and 2048Wh capacity for AC200MAX, while 2000W and 2000Wh for AC200P.
  2. Max. Input: 1400W for AC200MAX, while 1200W for AC200P.
  3. Output Port: AC200MAX has a 12V/30A NEMA TT-30 port.
  4. App Control: AC200MAX supports BLUETTI App control.

• Q18:What is the minimum number of solar panels that need to be connected?

  Because the AC200P supports the voltage range of 35-150v for solar panel charging, the total open circuit voltage of the solar panel needs to be above 35v.
  The minimum solar panels you need to buy are: SP120(2PCS), SP200 (2PCS), SP350 (1PCS)
