EB240 is a HUGE CAPACITY portable power station with lithium-ion battery capacity of 2400Wh (Li-ion battery cell, 101,351mAh/14.8V (equivalent to 405, 405mAh 3.7V)), 1000W pure sine wave output, PD Type-C Quick Charge (Max.45W), and Two ways of recharging (solar / wall). Unlike other small capacity power stations, it has a broader capacity and can charge higher power devices like electric drills, hairdryers, blenders (make sure the max. of your device is no more than 1000W). Once fully recharged the power station EB240, the huge capacity 2400Wh ensure your device has a much longer charge time, no need to recharge it time and time again.
The solar charging efficiency is much higher with MPPT built-in. It can track the strength of the sunlight and adapt to the best charging mode. You can connect the EB240 and the solar panel via our attached dc to the MC4 solar charging cable, no need for another controller.
We use the top brand lithium-ion battery cell, it has a longer lifetime (over 2000+), and higher discharge rate, better heat dissipation. We built-in BMS(battery management system), it has over-load/ over-current/ over-temperature/ over-voltage/ low-voltage/short circuit protection.
Although it has high load capability, make sure to check the rated/instant start-up power of your device, make sure it does not exceed 1000W, otherwise our EB240 will turn off for over-load protection. Load capability: Continuous 1000W. Over load capability: 1000W≤load≶1200W last for 120S; 1200W≤load, shut off after 0.5s.
The cooling fan will start if it meets one of the below: 1. A load of the inverter exceeds 400w. 2. A load of the 12V cigarette lighter socket exceeds 100w. 3. The charging power of the attached appliances exceeds 250W.
EB240 has 2400 watt-hour power stored in the lithium battery pack. It has huge power for indoor use and outdoor use for outdoor enthusiasts, travelers, adventurers, campers, RV’ers, Van lifers, liveaboards, and ocean anglers.

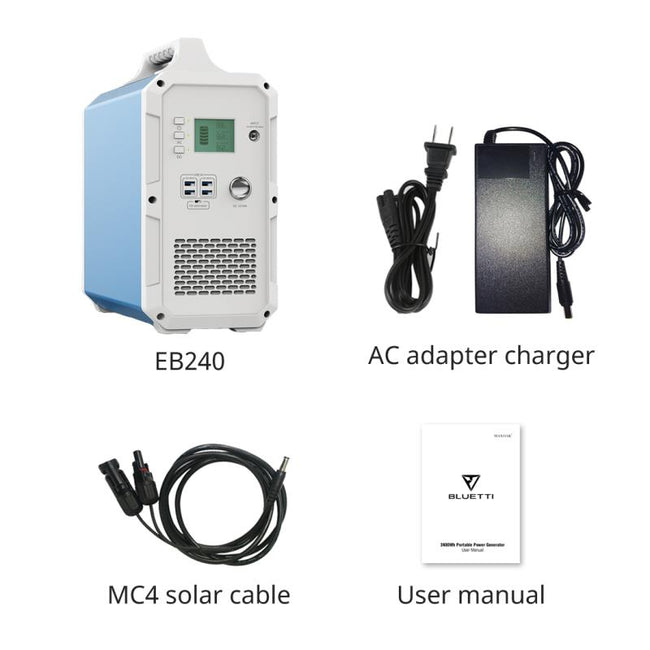

1*Portable Power Storage (EB240), 1*200W AC Wall Charger, 1*PV Solar Charging Cable(DC7909 to MC4), 1*User Manual, 1*Certificate of Qualification.
-
How to choose the solar panel & what is the recharge time?
we recommend to choose solar panel that meets below:
1) open circuit voltage between 16-68v(OCV,open circuit voltage), Max.500W, Max.10A
2) MC4 Connector (if your solar panel has an anderson connector, you need to buy a anderson to mc4 charging cable)
Note:total OCV below 16V or above 68V will trigger low-voltage/over-voltage protection. We suggest to choose the working voltage of the solar panel above 18v for better performance. EB240 only receive 500W/10A(Max.) if total input power /current exceed 500W/10A.
The recharge time various from different factors such as weather condition, the actual input solar power, temperature, angle, etc.
-
How many solar panels can i connect to the BLUETTI EB240?
we suggest to connect 2pcs SP120 120W solar panel or 2pcs SP200 200w solar panel in series.
For professional solar user, you can connect SP120 or SP200 2S2P(total 4pcs) to reach the max. solar. (the parallel cable need to buy separately)
