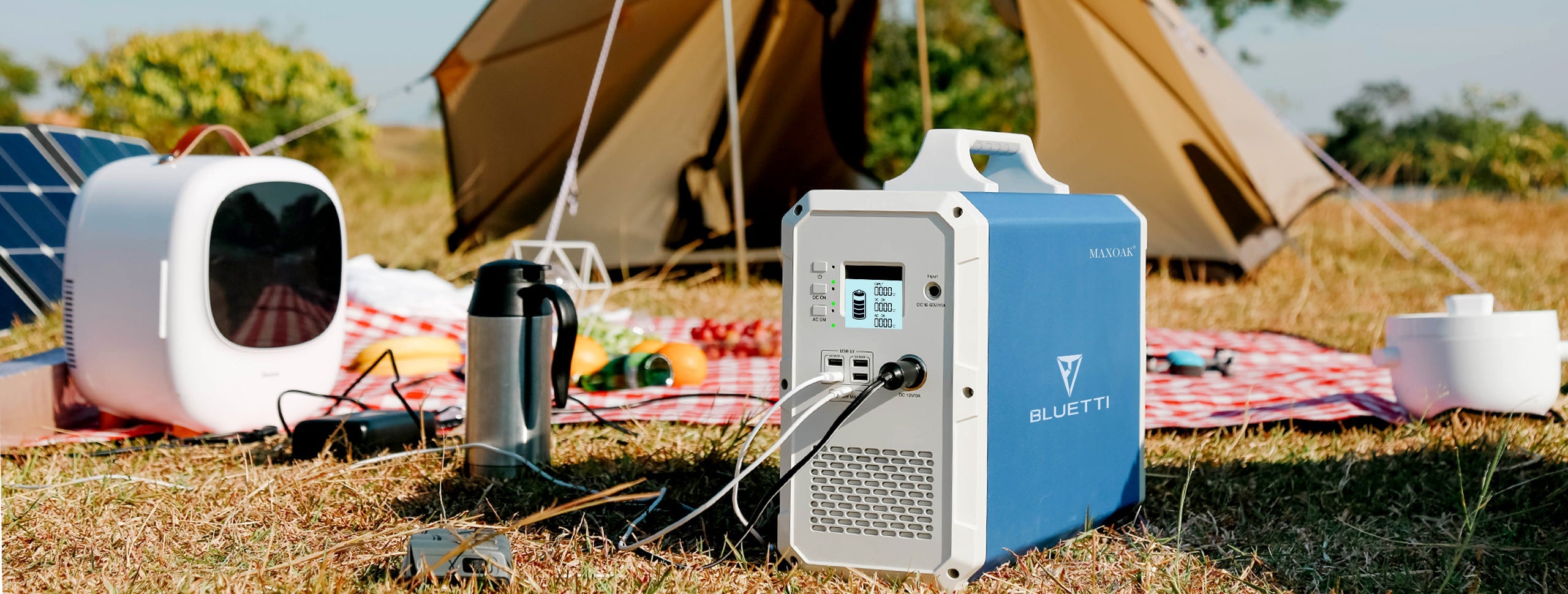

An Ideal Solution For Outdoor Use
You may also like
|Inverter Load:||Continuous 1000W (1000W≤load <1200W last for 120S;1200W≤load,shuf off after 0.5s)|
|Battery:||Li-ion battery cell,1200Wh,14.8V|
|Input:||AC Adapter Charger:42V/200W,Solar Charging Mode:MPPT .|
|Output:||12V/9A Cigar Lighter,5V USB,Type-C PD.||Net Weight:||12.6kg.|
A useful guide to making the most of it all.
What kind of device can be charged by BLUETTI EB120 ?
Since EB120 features a 1200Wh capacity and 1000W inverter, it can charge any devices under 1000W.
How to choose the solar panel and what is the charge time?
EB120 is compatible with solar panel as below: Open Circuit voltage (OCV):16-60V/ Max.10A, Max. 500W (charging cable included). Recommendation: SP120 120W or SP200 200W
How to check charging status?
The battery icon indicates the battery level of this product. The battery level is displayed EN-06 in 5 segments. Each segment indicates 20% of the battery capacity. When battery is being charged, the icon would flash. When the battery is fully charged, the icon would stop flashing and all 5 segments will be filled.
How to charge other electronic devices?
1. You need to know the working efficiency of your electronic devices. You can check the user manual of your electronic device or search online for such information.
2. You need to check the power at each output port. For example, the power at AC output port is provided by the built-in inverter of the product, whose maximum rated output power is 120W(Max). This means that if the power of connected electronic device is over 120W for a long period, the inverter will shut down output.
What is Depth of Discharge (DOD)?
To prolong battery life, we set the DOD of this portable power generator to 90%, which means only 90% of the battery capacity (200Wh) can be discharged. 10% of the energy is reserved so that the battery will not be damaged due to over-discharge.
Did it Support Charge and Discharge Simultaneously?
Yes, this power station can be discharged while charging. But for better protect the life- span of the battery, we do not suggest you use this pass-through function long term.
Can I Charge the Power Station with Two Solar Panel inSeries?
Yes, you can. But make sure the total open circuit voltage (OCV) is no more than 40V. otherwise it may power off automatically or cause damage.
How to Extend the Charge Time for CPAP?
We suggest turn off the humidifier/heater and set a lower pressure to get a longer charge time for CPAP.
How to calculate the working time for your devices?
Working time=1200Wh*0.85/ device's power. For example, the power of device is 60W, working time would be 1200Wh * 0.85/ 60W =17Hrs.
